Soil
SCIS Series
Sliding Inclinometer
Smart Bluetooth portable sliding inclinometer for one-operator manual borehole surveys, deep horizontal displacement profiles, and cloud-ready field data.
Products
Five categories, one complete monitoring chain from deformation, settlement, stress and environment sensing to data acquisition and software platform integration.
SCIS-IPI-01
In-Place Inclinometer
Automated IPI sensor chain for 7x24 deep-displacement monitoring with RS485 sensor chains, lightweight rods, and cloud alarms.
SCIS-SAA-02
Flexible Inclinometer / Shape Array SAA
Segmented, recoverable 3D deformation monitoring array for boreholes, settlement lines, tunnels, slopes, and reusable project deployments.
SCIS-GNSS-100
GNSS Monitoring System
All-in-one GNSS monitoring receiver for millimetre-level 3D displacement monitoring across slopes, dams, mines, and bridges.
SCST Series

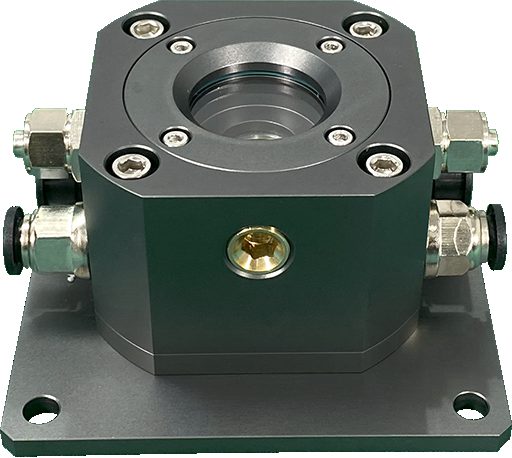

Hydrostatic Level Gauge
High-resolution settlement monitoring instrument with RS485 output for metro, foundation pit, dam, bridge, and building projects.
SCST-T01
Tiltmeter Series
MEMS and electrolytic tiltmeter options with wired RS485 and wireless LoRa / NB-IoT versions for structural tilt monitoring.
SCST-WV02
Wireless Tilt, Temperature & Vibration Sensor
Wireless tilt, temperature, and vibration sensor with FFT extraction, NB-IoT / 4G upload, and IP68 outdoor housing.
SCSE-VW01

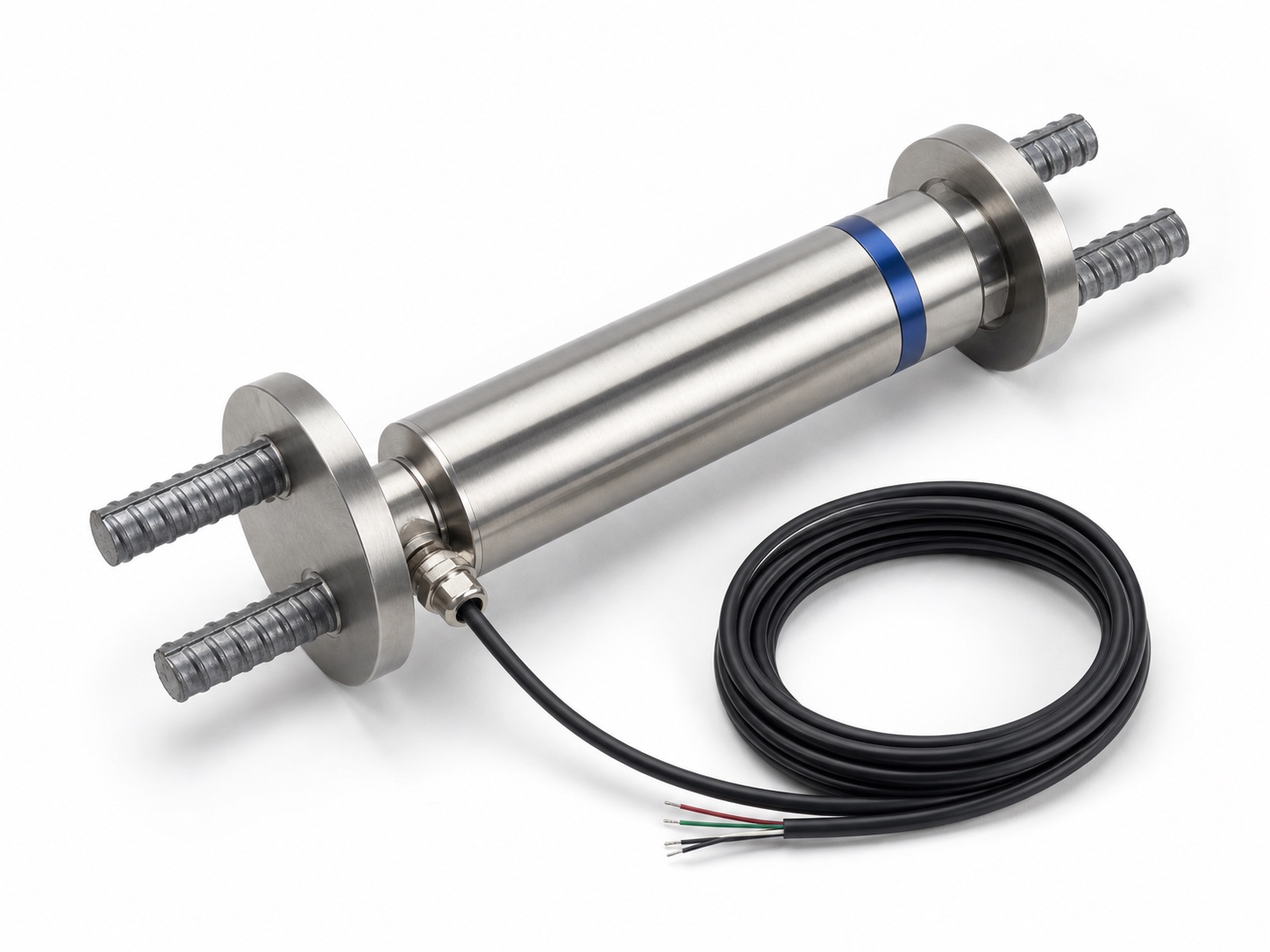

Vibrating-Wire Sensors & Acquisition
Vibrating-wire sensors and multi-channel acquisition for stress, strain, load, earth pressure, and pore water pressure monitoring.
SCDA-DG-01
Data Acquisition & Monitoring Cloud
Data acquisition gateway and monitoring cloud system for LoRa networking, vibrating-wire acquisition, dashboards, alarms, and API integration.
Core Technology
Leadership Defined by Data
Measurement Accuracy
Flexible inclinometer accuracy at a world-class level, supporting stable displacement interpretation over long monitoring lines.
Max Sampling Rate
High-frequency acquisition captures fast transient changes for dynamic construction and structural monitoring conditions.
Sensors on One RS485 Line
AutoID plug-and-play addressing reduces wiring complexity and keeps large sensor chains easier to commission.
Carbon-Fiber Rod Weight
Lightweight structures make deep borehole installation more practical without heavy machinery on constrained sites.
Ingress Protection
Built for wet, harsh, and long-term field environments where monitoring equipment must keep working.
Max Bending Angle
Segmented flexible structures adapt to large deformation while remaining recoverable and reusable across projects.
Open Source Engineering
Open Protocols, Transparent Data, Easier Integration
SoilCreate is one of the more open vendors in the engineering monitoring industry. We openly provide the firmware of our data loggers and the communication protocols of our sensors, allowing customers and integrators to review the data links, access their own platforms, and avoid vendor lock-in caused by black-box devices.
The controller project covers multi-channel RS485 acquisition, 4G, WiFi, Ethernet, USB data paths, local storage, low-power operation, and communication flows used by flexible and in-place inclinometers.
- ✓Controller firmware is open
Firmware exposes device configuration, RS485 drivers, network upload, local logging, and power management.
- ✓Sensor protocols are documented
Frame format, checksum logic, AutoID scanning, reading commands, and status codes are documented for integrators.
- ✓Client systems stay independent
Open interfaces help connect SoilCreate devices to SCADA, BIM, digital-twin, or safety-warning platforms.
Multi-Channel Acquisition
2-4 channels with controllable power and direction pins.
Network Upload
4G, WiFi, Ethernet, and USB CDC data paths.
Sensor Discovery
Documented address scanning and fixed-address mapping.
Structured Reporting
Segmented reporting and local storage improve traceability.
Make an enquiry
Submit your request without leaving the page. Price negotiation stays off the public catalog.
